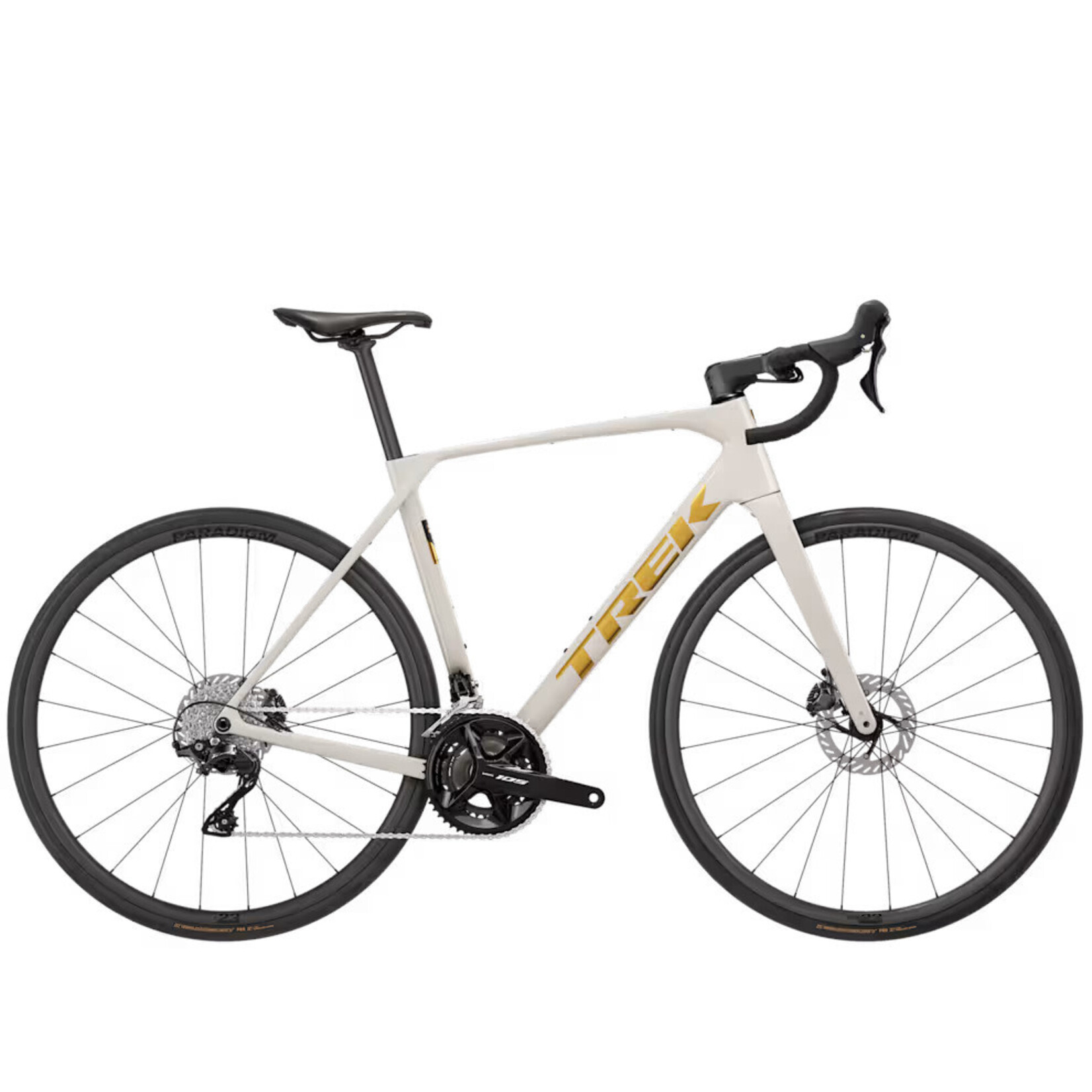

Domane SL 5 is a lightweight carbon endurance bike that blends all-day comfort with clean, modern simplicity. Built from 500 Series OCLV Carbon, it features all-road 40mm tire clearance and a streamlined design that gets back to the essence of road riding. A 12-speed Shimano 105 drivetrain delivers precise shifting and a sleek riser bar adds comfort without cluttering your front end, making it ready for long miles, big days, and light gravel detours.

Please note - spec applies to all sizes unless listed separately

Frameset

• Frame: 500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
• Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Drivetrain

• Shifter: Shimano 105 R7120, 12 speed
• Crank: Size: XS, S Shimano 105 R7100, 50/34, 160mm length Size: M, ML Shimano 105 R7100, 50/34, 165mm length Size: L, XL Shimano 105 R7100, 50/34, 170mm length
• Bottom bracket: Praxis, T47 threaded, internal bearing
• Cassette: Shimano 105 7101, 11-34, 12 speed
• Chain: Shimano SLX M7100, 12 speed

Wheels

• Hub front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
• Skewer front: Bontrager Switch chamfered thru axle
• Hub rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
• Skewer rear: Bontrager Switch chamfered thru axle, removable lever
• Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
• Spokes: 14g stainless steel, black
• Tire: Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35mm
• Tire part: Bontrager TLR sealant, 180 ml/6 oz
• Max tire size: 40mm

Components

• Saddle: Verse Short Comp, steel rails, 145mm width
• Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length
• Handlebar: Size: XS, Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 36cm width, Size: S, Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 38cm width, Size: M, ML, Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 40cm width, Size: L, XL, Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 42cm width
• Handlebar tape: Trek gel cork
• Stem: Size: XS: Trek RCS Pro, -7 degree, 80mm length
• Size: S: Trek RCS Pro, -7 degree, 90mm length
• Size: M: Trek RCS Pro, -7 degree, 100mm length
• Size: ML, L: Trek RCS Pro, -7 degree, 110mm length
• Size: XL: Trek RCS Pro, -7 degree, 120mm length
• Brake rotor: Shimano CL700, centerlock, 160mm
• Rotor size: Max brake rotor sizes: 180mm front, 160 rear
