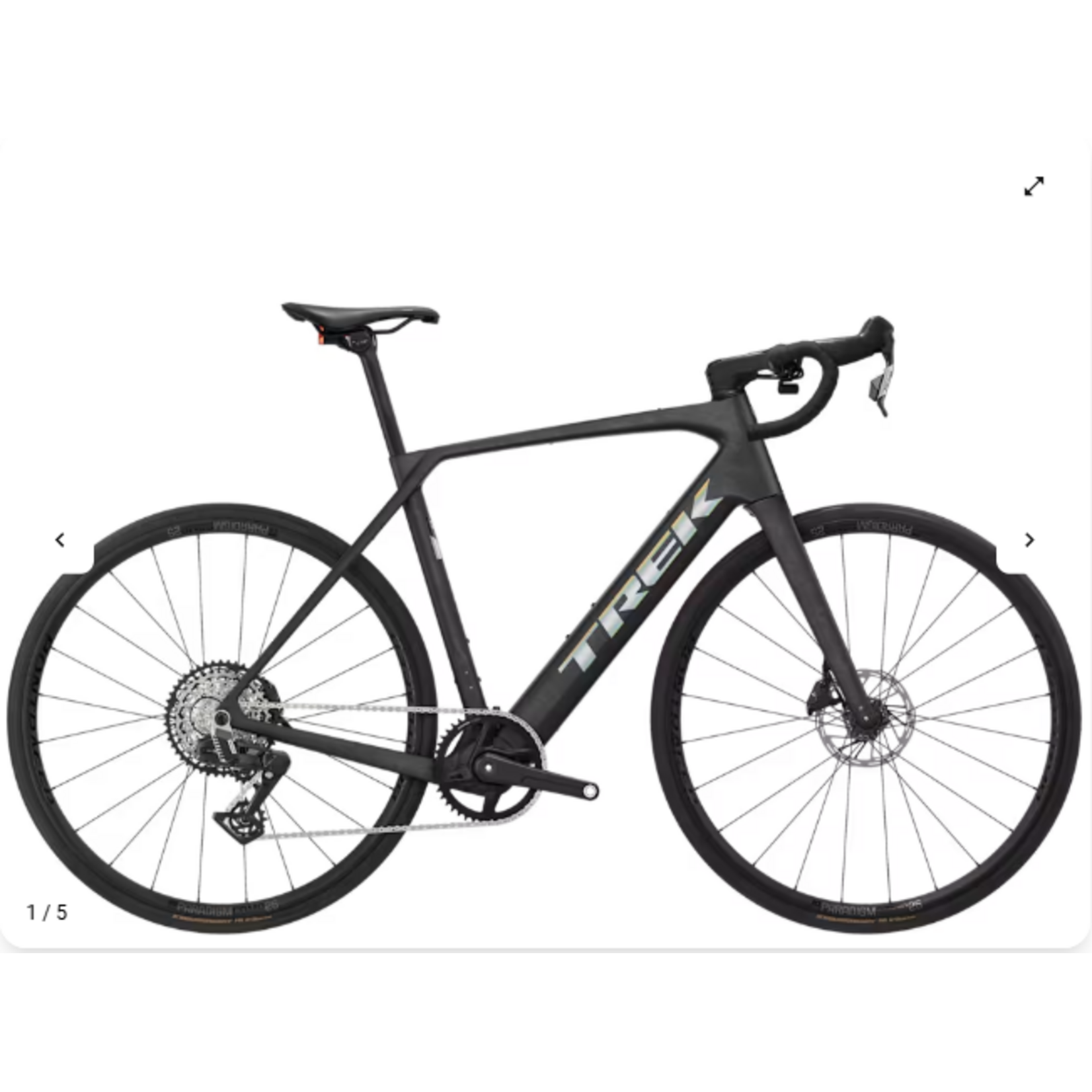

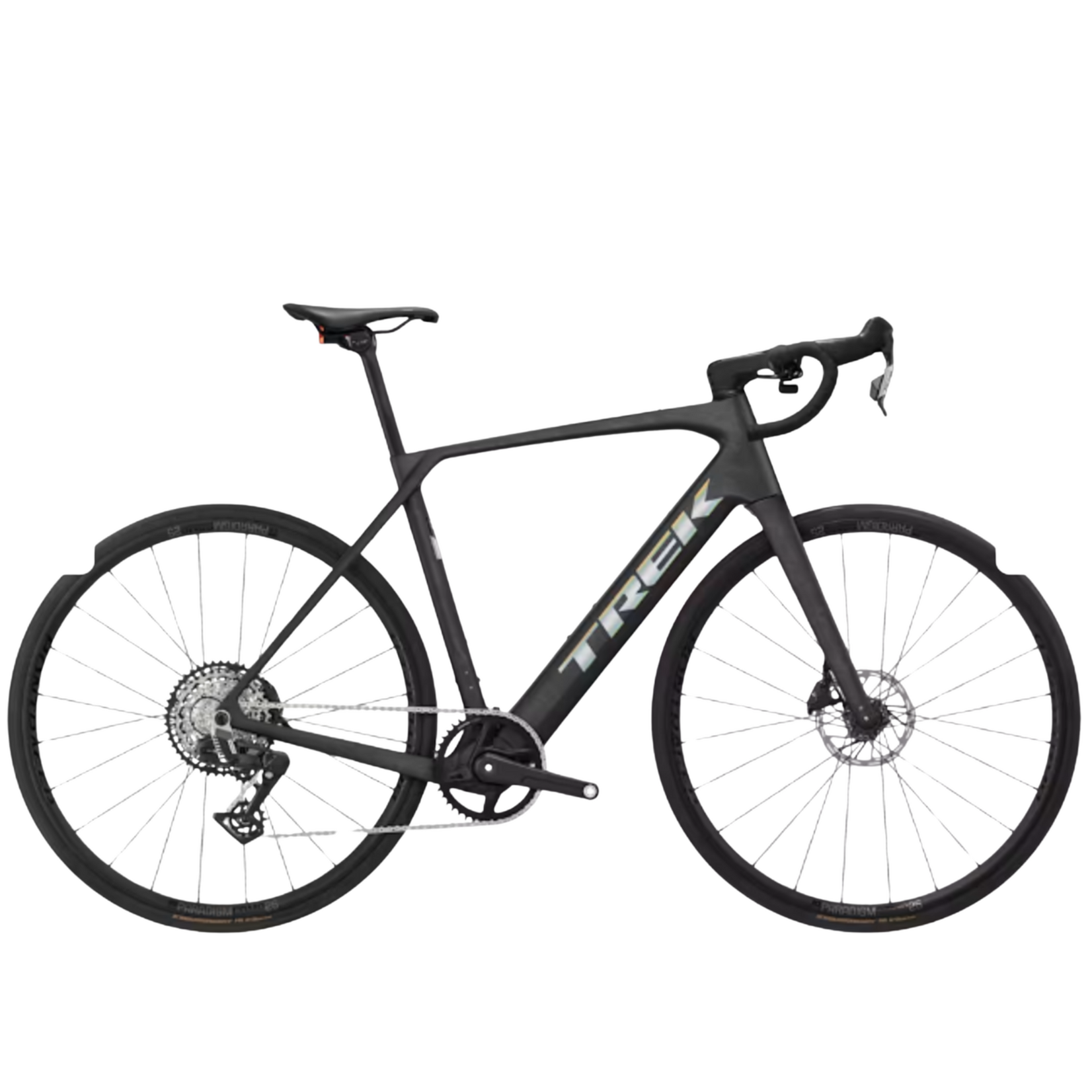

Domane+ SL 6 AXS brings Domane’s smooth endurance ride to electric road riding. Built from 500 Series OCLV Carbon and powered by the quiet, natural-feeling TQ HPR40 system, it gives you a smooth boost on climbs and long rides while preserving the ride feel you already love. A wireless SRAM Rival AXS 1x13 drivetrain, generous 40mm tire clearance, and integrated mounts make it ready for all-day road rides and light gravel adventures. Plus, Project One lets you choose your battery size, parts sizing, and paint to make it your own.
Frame
- Frame: 500 Series OCLV Carbon, TQ drive system, tapered head tube, integrated frame bag mounts, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
- Fork: Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm chamfered thru axle.
- Weight: ML - 12.11 kg / 26.7 lbs (with TLR sealant, no tubes)
Frame
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-system
- Battery: TQ 360Wh
- Charger: TQ 4A charger
- Controller: TQ color LED display with Bluetooth & ANT+ connectivity
- Motor: TQ-HPR40, 40 Nm, 200 watt peak power
- E-bike Classification: Class 1
- Max assist speed: 32 km/h

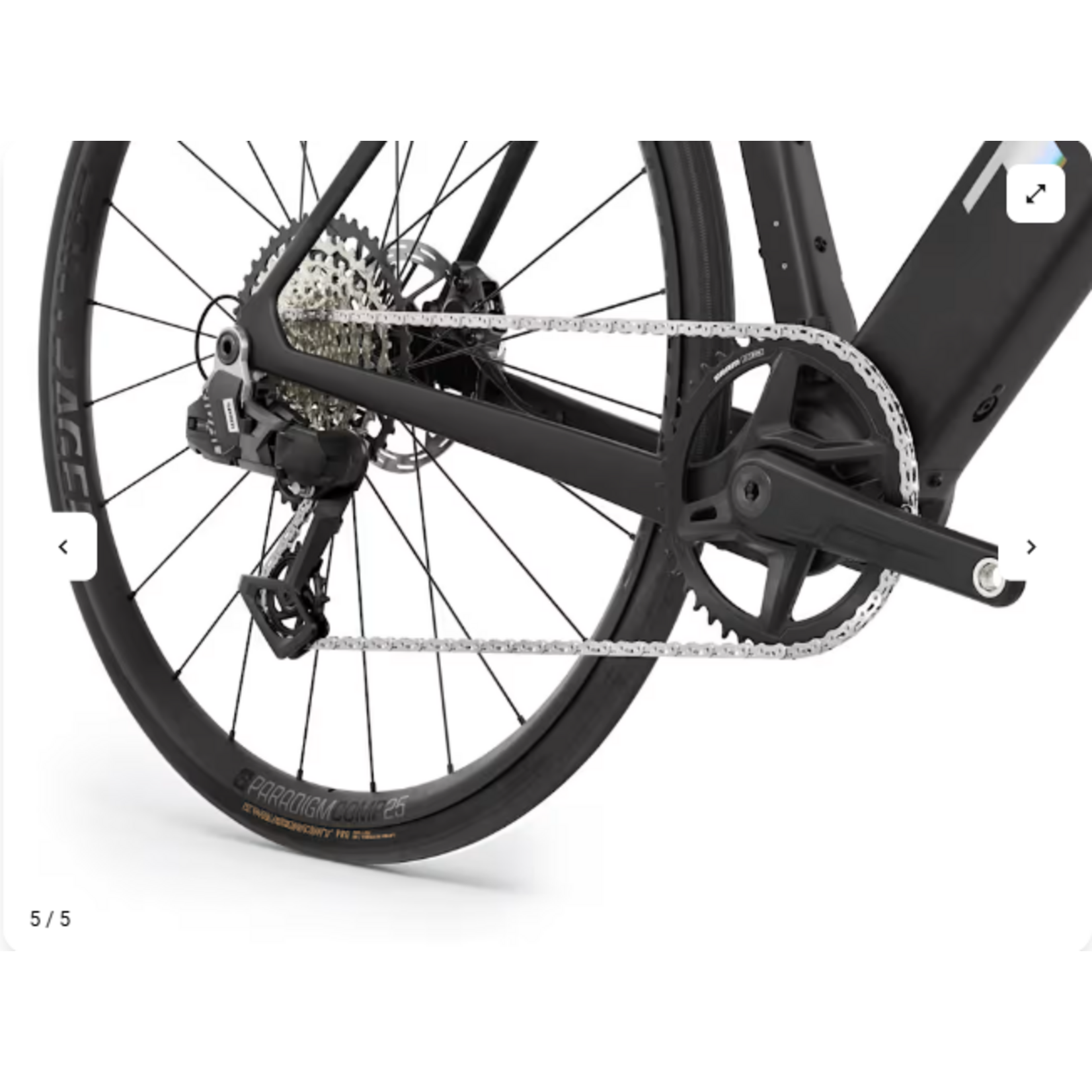

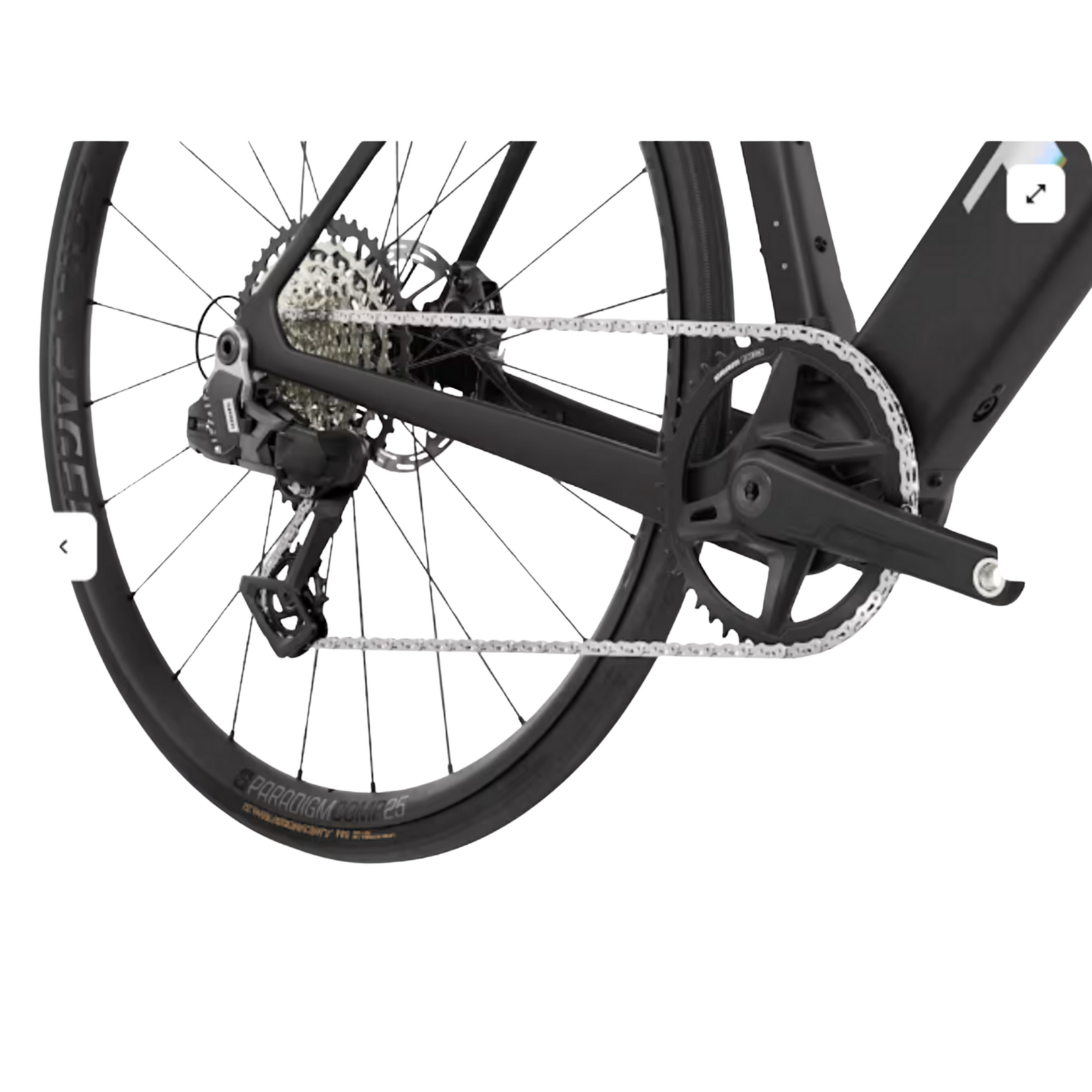

Drivetrain
- Shifter: SRAM Rival AXS E1
- Rear derailleur: SRAM Rival XPLR AXS, 46T max cog
- Crank arm: Size: XS, S, M, ML: thirteen Piedmont Core E*spec, 165mm length, Size: L, XL: thirteen Piedmont Core E*spec, 170mm length
- Chain ring: SRAM X-SYNC, 44T, alloy
- Cassette: Sram Rival XPLR XG-1351, 10-46, 13 speed
- Chain: SRAM Rival E1, 12/13 speed
Max chainring size: 1x: 48T
Wheels
- Wheel front:Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
- Wheel rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
- Skewer front: Bontrager Switch chamfered thru axle
- Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Tire
- Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35mm
- Bontrager TLR sealant, 180 ml/6 oz
- Rim strip: Bontrager TLR
- Max tire size: 40mm without fenders, 35mm with fenders
Components
- Saddle: Verse Short Comp, steel rails, 145mm width
- Seatpost: Bontrager RSL carbon, 27.2mm, 5mm offset
Handlebar
- Size: XS: Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 36cm width
- Size: S: Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 38cm width
- Size: M, ML: Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 40cm width
- Size: L, XL: Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 42cm width
Stem
- Size: XS: Trek RCS Pro, -7 degree, 80mm length
- Size: S: Trek RCS Pro, -7 degree, 90mm length
- Size: M: Trek RCS Pro, -7 degree, 100mm length
- Size: ML, L: Trek RCS Pro, -7 degree, 110mm length
- Size: XL: Trek RCS Pro, -7 degree, 120mm length
Brake rotor
- SRAM Paceline, rounded, centerlock, 160mm
- Rotor size: Max brake rotor sizes: 160mm front & rear
Accessories
- Lights: Trek Flare C, taillight and SUPERNOVA SS MINI HEADLIGHT
